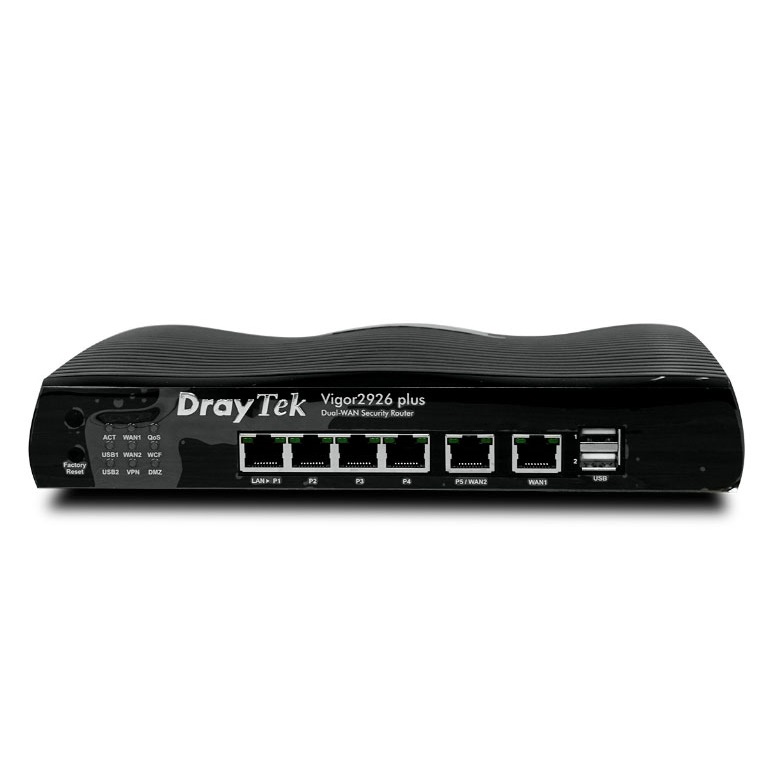

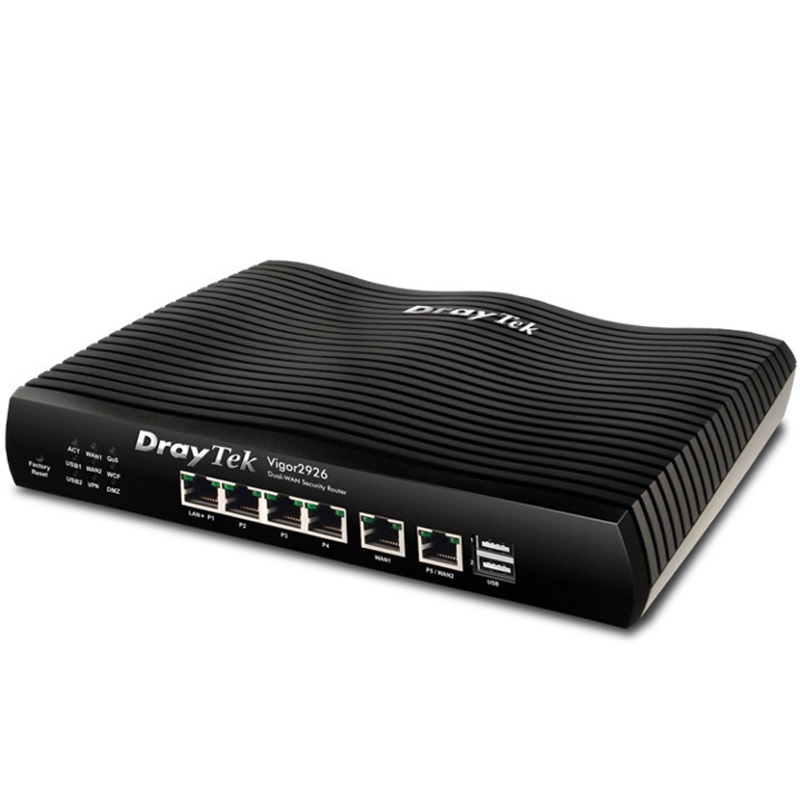

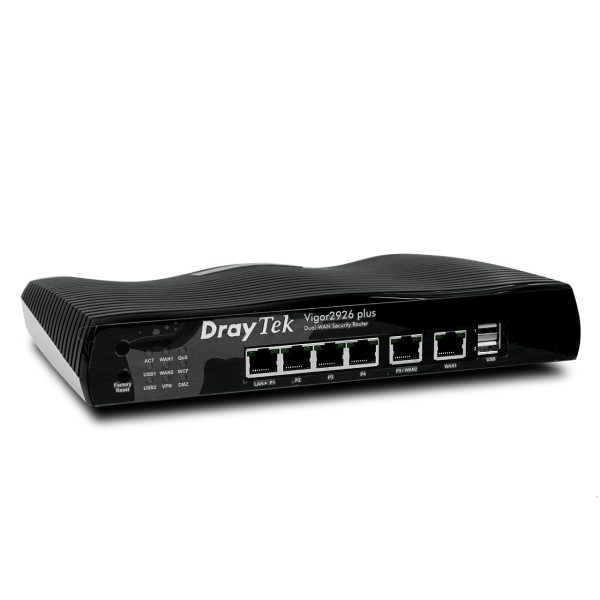

Router Draytek Vigor2926 Plus

  • Hãng: Draytek
  • Hàng full box, new 100%
  • Bảo hành chính hãng.

Liên hệ chúng tôi để được hỗ trợ tốt nhất

phone
zalo
facebook
map
Category:

Các tính năng chính

  • High Througput Enterprise Dual Wan Load Balancing VPN Router
  • 2 cổng WAN Gigabit RJ45
  • WAN 3 & 4: 2 x USB 2.0 gắn 3.5G/4G (LTE) USB modem
  • 4 cổng LAN Gigabit, hỗ trợ VLAN tag 802.1q chia 16 VLAN (8 Subnet).
  • NAT Session: 50.000 / NAT Throughput: 900Mbps, chịu tải 100-120 user
  • VPN Throughput: 200Mbps
  • Cân bằng tải (cộng gộp băng thông) hoặc dự phòng các đường truyền internet (Loadbalance/ Failover)
  • Hỗ trợ đường truyền đa dịch vụ (IPTV, Internet, VoIP,…)
  • Triển khai các dịch vụ: Leasedline, L2VPN, L3VPN, MetroNET,…trên sub interface (NAT hoặc Routing)
  • VPN Server 50 kênh (PPTP, L2TP, IPSec, 25 kênh SSL); VPN Trunking (LoadBalance / Backup); VPN qua 3G/4G.
  • Kiểm soát và quản lý băng thông giúp tối ưu hóa đường truyền internet
  • Web Portal: Hiện trang quảng cáo khi khách hàng kết nối internet
  • Firewall mạnh mẽ, linh hoạt, quản trị phân quyền truy cập Internet (IP/MAC Address, Port Service, URL/Web content filter, schedule,…)
  • Quản lý theo user name/password; Hỗ trợ chứng thực qua máy chủ Radius/LDAP
  • DrayDDNS tên miền động miễn phí của DrayTek
  • Quản lý VPN tập trung VPN cho 8 site Router Vigor khác qua Internet (CVM)
  • Quản lý tập trung cho 20 Access Point (APM), 10 Switch DrayTek (SWM)
  • Quản lý tập trung Vigor2926 bằng phần mềm DrayTek VigorACS 2 hoặc cloud DrayTek Free
PHẦN CỨNG
Port
  • 2 x GbE WAN
  • 4 x GbE LAN
  • 2 x USB 2.0
Nguồn
  • DC 12V/1.5A
Nút điều khiển
  • 1 x Factory Reset Button
PHẦN MỀM
WAN
  • Ethernet WAN
    • DHCP Client
    • Static IP
    • PPPoE
    • PPTP / L2TP (WAN-2 only)
    • 802.1q Multi-VLAN Tagging
  • IPv6 Connection Type
    • Dual Stack: PPP, DHCPv6 Client, Static IPv6
    • Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
  • USB WAN
    • PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU
  • Dual WAN
    • Load-Balance / Route Policy
    • Outbound policy-based load-balance
    • WAN Connection Failover
    • Multiple-VLAN
Network
  • Hotspot Web Portal
  • Packet Forwarding Acceleration
  • DHCP client/relay/server
  • DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
  • IGMP v2/v3
  • LAN DNS /DNS Forwarding
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS /TACACS+ Client
  • Internal RADIUS Server
  • Active Directory /LDAP compatible (client)
  • DNS Cache/Proxy and LAN DNS
  • UPnP 50 sessions
  • Wake on LAN
  • Bonjour service
  • Routing Protocol:
    • Static Routing
    • RIP v1/v2
    • BGP
  • Triple-Play Application
    • IGMP snooping/proxy
  • 8 x Multiple Subnet LAN
Management
  • Web-based User Interface (HTTP/HTTPS)
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP v2/v3
  • Support SMS/E-mail Alert
  • Management Session Time Out
  • Two-level Management (Admin/User Mode)
  • External device detection (master mode)
  • TR-069/TR-104
  • Support Multiple-Firmware Upgrade Utility (MFUU)
  • Dashboard
Chất lượng dịch vụ
  • QoS
    • Guarantee bandwidth for VoIP
    • Class-based bandwidth guarantee by user-defined traffic categories
    • DiffServ Code Point classifying
    • 4-level priority for each direction (Inbound/Outbound)
    • Bandwidth borrowed
  • Bandwidth/Session limitation
    • Smart Bandwidth Limit
    • config by ip range
    • Layer-3 (TOS/DSCP) QoS
  • Layer-2 (802.1p) QoS
  • WAN budget
VPN
  • Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
  • VPN Wizard
  • VPN Trunk with Backup / Load Balance
  • Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
  • Encryption : MPPE and hardware-based AES/DES/3DES
  • Authentication : MD5, SHA-1
  • IKE Authentication : Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
  • DHCP over IPsec
  • IPsec NAT-traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-through
  • mOTP
Tính năng nâng cao
  • Firewall
    • DMZ Host：Port-redirection, Open Port, Port Triggering
    • User-based / Rule-based Firewall
    • Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track)
    • DoS Prevention
    • Time Schedule Control
    • DNS Filter Enhancement
    • User Management
    • Firewall Wizard Mode and Advanced Mode
  •  CSM (Content Security Management)
    • APP Enforcement
      • Support APPE Signature Upgrade by license
    • URL Content Filter
      • Access Control : URL Keyword Blocking (White/Black List)
      • Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
    • Web Content Filter (support Cyren and BPjM)
    • DNS Filter
  • Central Device Management
    • AP Management
    • VPN Management
    • Switch Management
    • External Devices
USB
  • File System
    • Support FAT32 File System
  • Support FTP Function for File Sharing
  • 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN)
  • USB Device Status (disk/modem/printer/sensor)
  • Support USB Temperature Sensor
  • Support file sharing (DrayTek’s own SMB protocol stack)
THÔNG SỐ KHÁC
Môi trường
  • Temperature   Operating : 0°C ~ 45°C
  • Temperature  Storage : -25°C ~ 70°C
  • Humidity :10% ~ 90% ( non-condensing )
